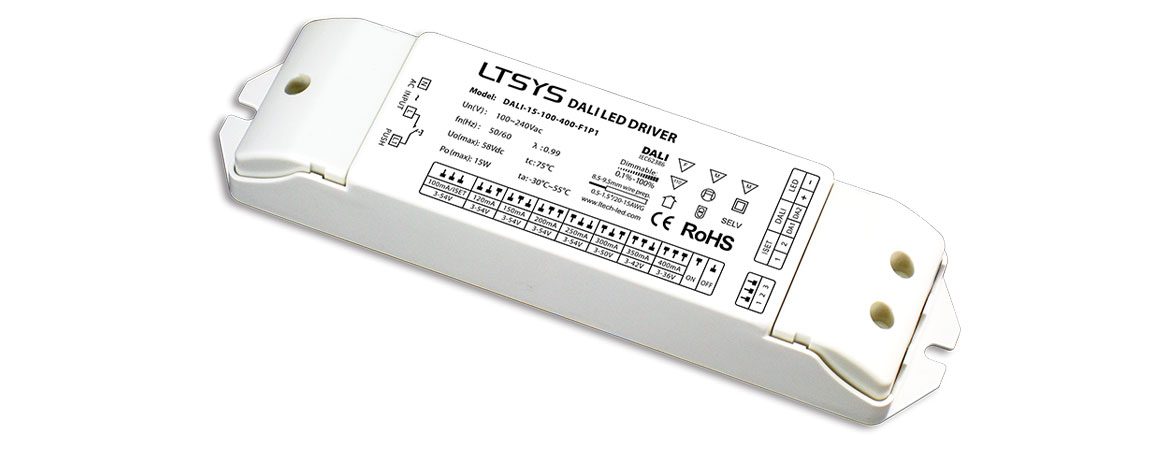

DALI-15-100-400-F1P1 |
|
| Dimming interface: | DALI/PUSH DIM |
| Dimming range: | 0-100% LED Startup Current<0.1% |
| Input voltage: | 100-240VAC |
| Power factor: | >0.99 |
| Efficiency: | >85% |
| Current Accuracy: | ±3% |
| Output voltage: | 3-54VDC |
| CC output: | 100mA-400mA |
| Output power: | 0.3W-15W |
| working temperature: | -30℃～55℃ |
| Dimension: | 175x44x30mm(LxWxH) |
| Package Size: | 178x48x33mm(LxWxH) |
| Weight (G.W): | 150g |
DALI-25-180-700-F1P1 |
|
| Dimming interface: | DALI/PUSH DIM |
| Dimming range: | 0-100% LED Startup Current<0.1% |
| Input voltage: | 100-240VAC |
| Power factor: | >0.99 |
| Efficiency: | >85% |
| Current Accuracy: | ±3% |
| Output voltage: | 3-54VDC |
| CC output: | 180mA-700mA |
| Output power: | 0.54W-25W |
| working temperature: | -30℃～55℃ |
| Dimension: | 175x44x30mm(LxWxH) |
| Package Size: | 178x48x33mm(LxWxH) |
| Weight (G.W): | 160g |
DALI-15-100-400-F1P2 |
|
| Dimming interface: | DALI/1-10V/PUSH DIM |
| Dimming range: | 0-100% LED Startup Current<0.1% |
| Input voltage: | 100-240VAC |
| Power factor: | >0.99 |
| Efficiency: | >85% |
| Current Accuracy: | ±3% |
| Output voltage: | 3-54VDC |
| CC output: | 100mA-400mA |
| Output power: | 0.3W-15W |
| working temperature: | -30℃～55℃ |
| Dimension: | 175x44x30mm(LxWxH) |
| Package Size: | 178x48x33mm(LxWxH) |
| Weight (G.W): | 155g |
DALI-25-180-700-F1P2 |
|
| Dimming interface: | DALI/1-10V/PUSH DIM |
| Dimming range: | 0-100% LED Startup Current<0.1% |
| Input voltage: | 100-240VAC |
| Power factor: | >0.99 |
| Efficiency: | >85% |
| Current Accuracy: | ±3% |
| Output voltage: | 3-54VDC |
| CC output: | 180mA-700mA |
| Output power: | 0.54W-25W |
| working temperature: | -30℃～55℃ |
| Dimension: | 175x44x30mm(LxWxH) |
| Package Size: | 178x48x33mm(LxWxH) |
| Weight (G.W): | 160g |
