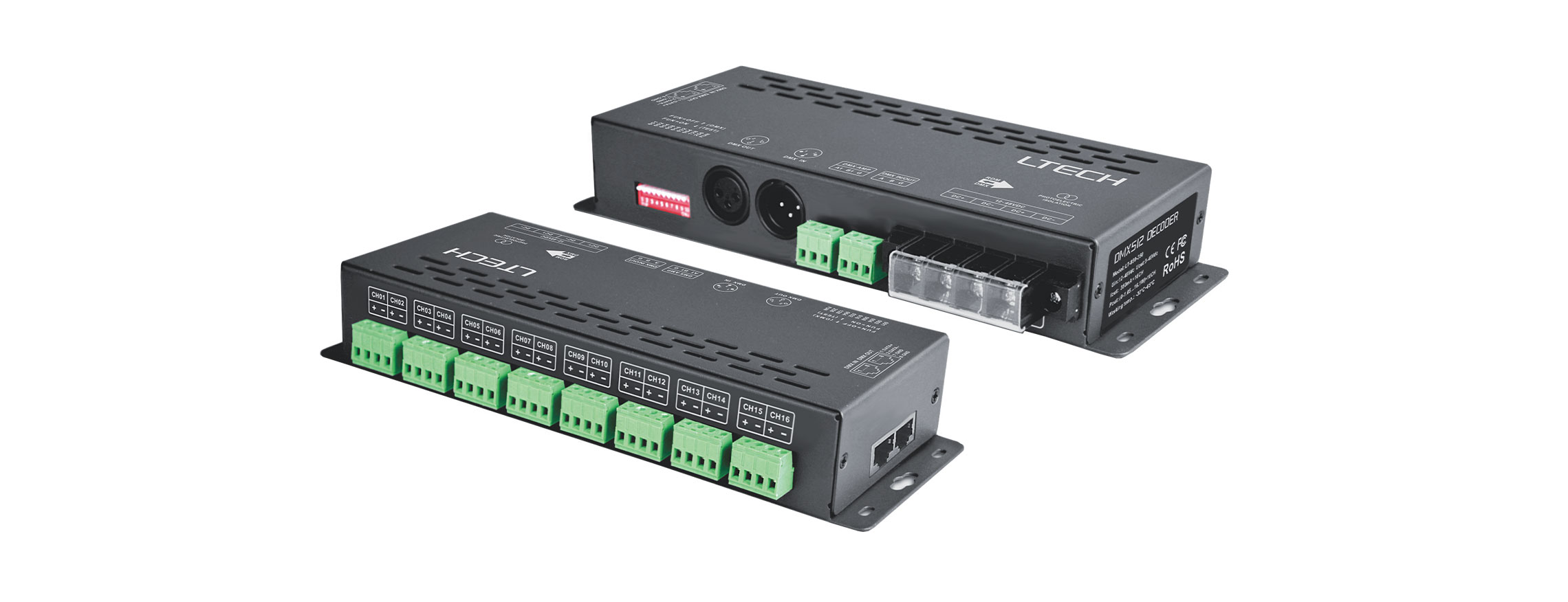

LT-880-350 16CH DMX-PWM Decoder |
|
| Input signal | DMX512 |
| Input power | DC12V～DC48V |
| Output voltage | DC3V~DC42V |
| Max load current | 350mA ×16CH |
| Output power | 1.05W~14.7W×16CH Max 235.2W |
| DMX512 socket | XLR-3, Green terminal (with signal amplification function) |
| Dimming range | 0~100% |
| Working temperature | -30℃～65℃ |
| Dimension | L260×W123×H42mm |
| Package Size | L268×W127×H44mm |
| Weight (G.W) | 950g |
