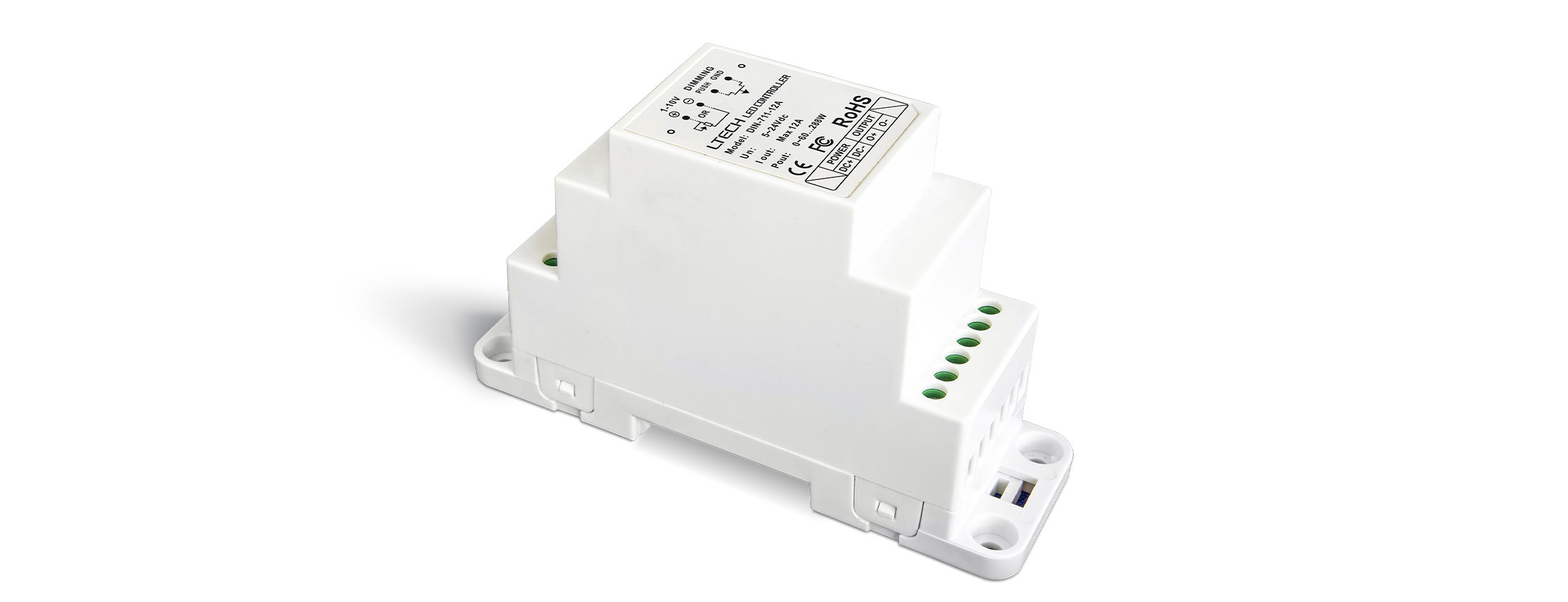

CV 0-10V 1-10V Dimming Driver DIN-711-12A

  • Description
  • Manual
  • Certificate
  • Video
  • Related
Product Introduction:
  • 1、Dimming interface:0-10V, 1-10V, 10V PWM or push button
  • 2、PWM digital dimming, no alter LED color rendering index.
  • 3、Dimming range from 0-100%, LED start at 0.1% possible.
  • 4、Max. current output: 12A.
  • 5、Short circuit / Over load protection.
  • 6、Full protective plastic housing.
  • 7、Suitable for indoor environments.
Technical Specs:

DIN-711-12A   CV 0-10V, 1-10V Dimming Driver(DIN rail/Screw dual-use)

Input signal 0-10V, 1-10V, 10V PWM, or push button
Input voltage DC12V~DC24V
Max load current 12A ×1CH  Max 12A
Max output power 144W/288W(12V/24V)
Dimming Range 0~100%
working temperature -30℃~55℃
Dimension L112×W35×H67(mm)
Package Size L114×W37×H70(mm)
Weight (G.W) 125g
