LED WiFi Controller WiFi-106

  • Description
  • Manual
  • Video
  • Related

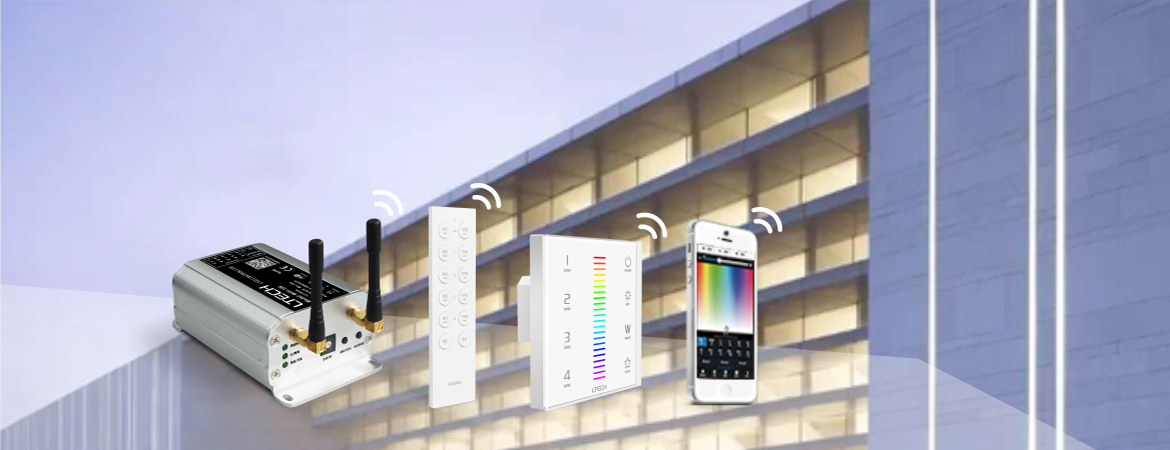

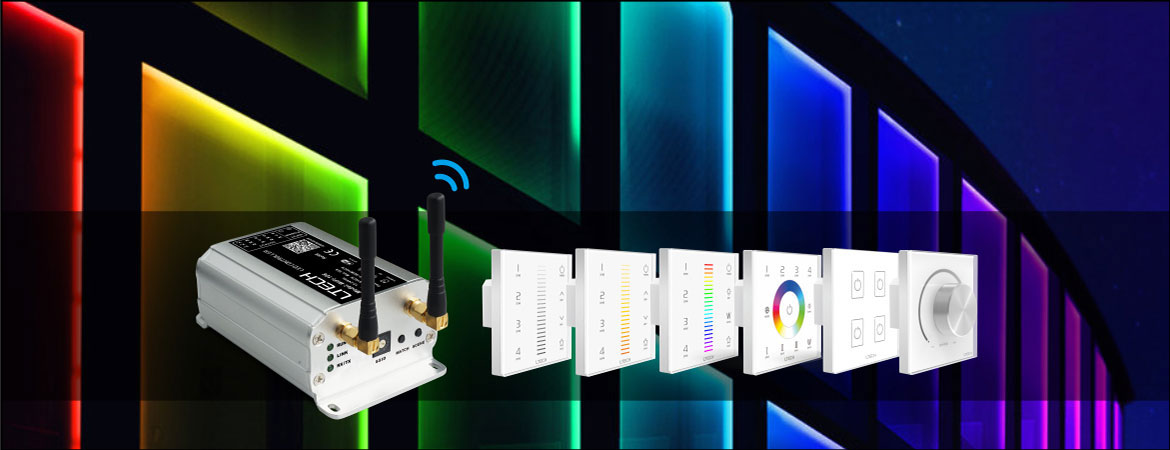

Wifi-106 WiFi Lighting Control System

WiFi-106 is a WiFi lighting control system, Controls various types of LED lighting products by installing the related App on our iOS or Android mobile devices which support WiFi connection. consisted of APPs and WiFi controller.

With DIM, CT adjustment, RGB and RGBW changing 4 in 1 operation, plus 12 zones control function, you can connect directly or by a router.


Product parameter

WiFi-106 Controller

Communication standard 2.4GHz WiFi, 802.11b/g/n Protocol
Input voltage 12~24Vdc
Output Current 4A×4CH Max. 16A
Max output power (0~48W...96W)×4CH Max. 384W
Control distance Max. 100m (eye to eye)
Working temperature -30℃~55℃
Dimensions L128×W73×H45(mm)
Package size L160×W110×H50(mm)
Weight (G.W.) 470g

F12 RF Remote Control

Working voltage 3Vdc (Battery CR2032)
Working Frequency 2.4GHz
Package Size L150×W46×H18(mm)
Weight (G.W.) 85g







Software Technical Parameters

Platform Android 4.0 or above, iOS 8.0 or above
Language English
Category Appliance



Download (Scan QR Code via mobile phone)

Video:
