OLED DMX
High-end version
The king of DMX Decoder
Excellent performance
The world's first DMX decoder with OLED screen display
16bit/8bit
CH 65536 grayscale/CH
16bit/8bit input
CH 65536 grayscale/CH
3 dimming curve optional
Frame rate as high as 850FPS
Built-in protection circuit of resistance to lighting stroke and ESD static electricity
Product parameter
LT-811-12A
|
|
Input signal |
DMX512 |
|
Input power |
DC12V～DC24V |
|
Max load current |
12A ×1CH + 0-10V ×1CH + 10V PWM ×1CH |
|
Max output power |
144W/288W/(12V/24V) |
|
Dimming range |
0～100% |
|
Working temperature |
-30℃～55℃ |
|
Dimension |
L175×W44×H30(mm) |
|
Package Size |
L178×W48×H33(mm) |
|
Weight (G.W) |
160g |
LT-823-6A
|
|
Input signal |
DMX512 |
|
Input power |
DC5V～DC24V |
|
Max load current |
6A ×3CH Max 18A |
|
Max output power |
90W/216W/432W/(5V/12V/24V) |
|
Dimming range |
0～100% |
|
Working temperature |
-30℃～55℃ |
|
Dimension |
L175×W44×H30(mm) |
|
Package Size |
L178×W48×H33(mm) |
|
Weight (G.W) |
175g |

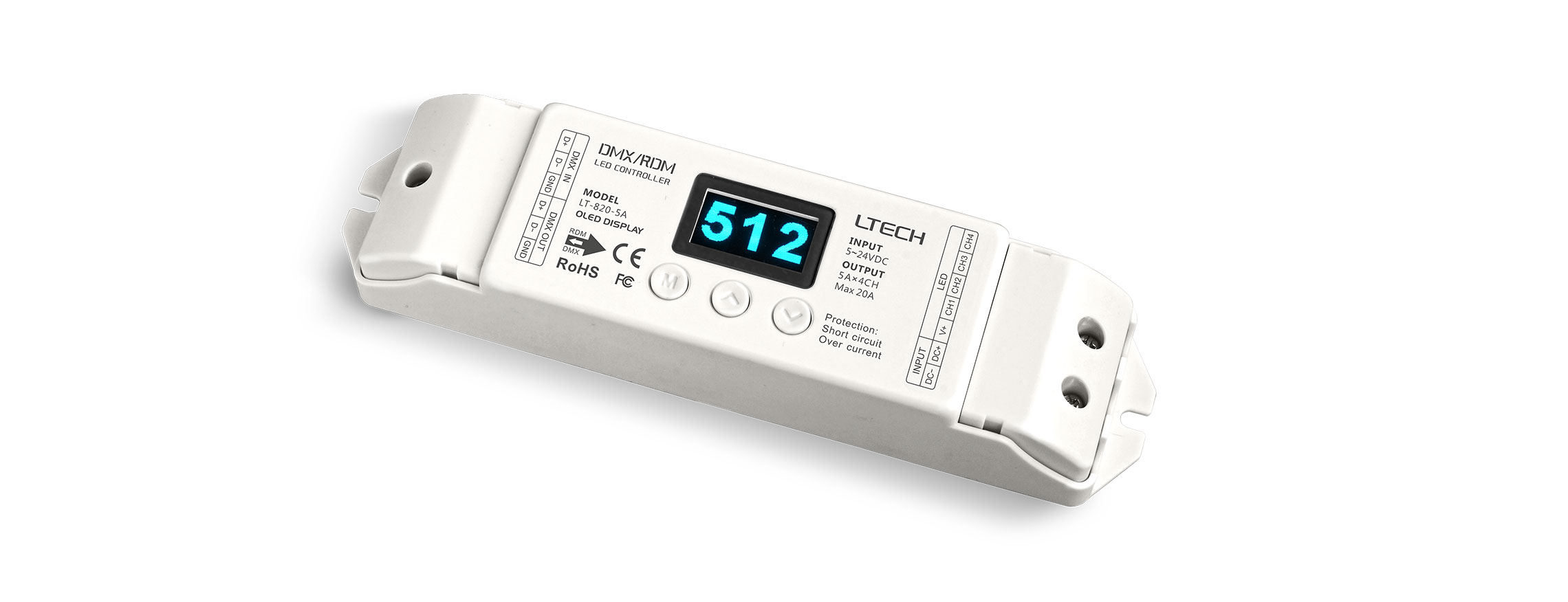

LT-820-5A
|
|
Input signal |
DMX512 |
|
Input power |
DC5V～DC24V |
|
Max load current |
5A ×4CH Max 20A |
|
Max output power |
100W/240W/480W/(5V/12V/24V) |
|
Dimming range |
0～100% |
|
Working temperature |
-30℃～55℃ |
|
Dimension |
L175×W44×H30(mm) |
|
Package Size |
L178×W48×H33(mm) |
|
Weight (G.W) |
175g |
