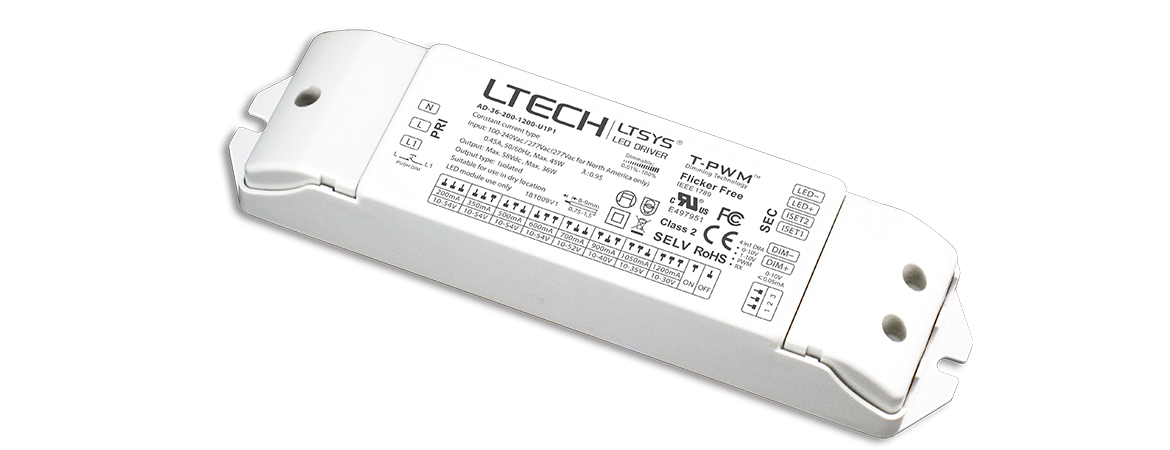

36W 200-1200mA CC 0-10V Driver AD-36-200-1200-U1P1

  • Description
  • Manual
  • Video
  • Related
Product Introduction:
  • 1、Dimming interface:0-10V(1-10V/PWM/RX), Push DIM
  • 2、Built-in high performance MCU, dimming curve can be customized.
  • 3、PWM digital dimming, no alter LED color rendering index.
  • 4、Dimming range: 0~100%, LED start at 0.1% possible.
  • 5、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
  • 6、Multi-current & wide voltage, suitable for different power LED.
  • 7、Short circuit / Over-heat / Over load / Non-load protection.
  • 8、Class 2 power supply. Full protective plastic housing.
  • 9、Compliant with Safety Extra Low Voltage standard.
  • 10、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Technical Specs:


Dimming interface: 0-10V, 1-10V, 10VPWM OR PUSH
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-277Vac (Max. 90-305Vac)
Efficiency: PF>0.95/115Vac, PF>0.9/230Vac, PF>0.85/277Vac (full load)
Current Accuracy: ±5%
Output voltage: 10-54VDC
CC output: 200mA-1200mA
Output power: 2W-36W
working temperature: ta: -30°C ~ 55°C tc: 75°C
Dimension: 175x44x30mm(LxWxH)
Package Size: 178x48x33mm(LxWxH)
Weight (G.W): 175g±10g
